SEON: Networked Ontology Specification

Software Artifact Ontology (SwAO)

1. Ontology Description

The Software Artifact Ontology (SwAO) aims at establishing a common conceptualization regarding Software Artifacts, including software products and related components.
SwAO captures that software products have a complex artifactual nature, being constituted of software artifacts of different nature, including software systems, programs and code. Artifacts are objects consumed or produced during the software process. They can present different nature and composition. Possible types of Artifacts are (not limited to): Software Product (e.g. Eclipse IDE), Software Item (e.g. a database schema), Information Item (e.g. a bug reported), Model (e.g. a UML class model) and Document (e.g. a requirements specification). Documents can depict other Artifacts, as it is the case of a Design Specification describing a Software Architecture. The concepts Artifact Type, Document Type and Software Product Type define the possible specializations of Artifact, Software Product and Document (respectively).
An Artifact can be composite or simple. A Composite Artifact is composed of two or more other Artifacts (e.g. a Project Plan composed of artifacts as a WBS diagram and a Risk Plan). A Simple Artifact is not decomposable. Artifacts can also depend on other Artifacts to be produced or updated, such as a Test Case depending on the Code it was designed to test.

2. Related Ontologies

Networked ontologies used by SwAO:

3. Ontology Models

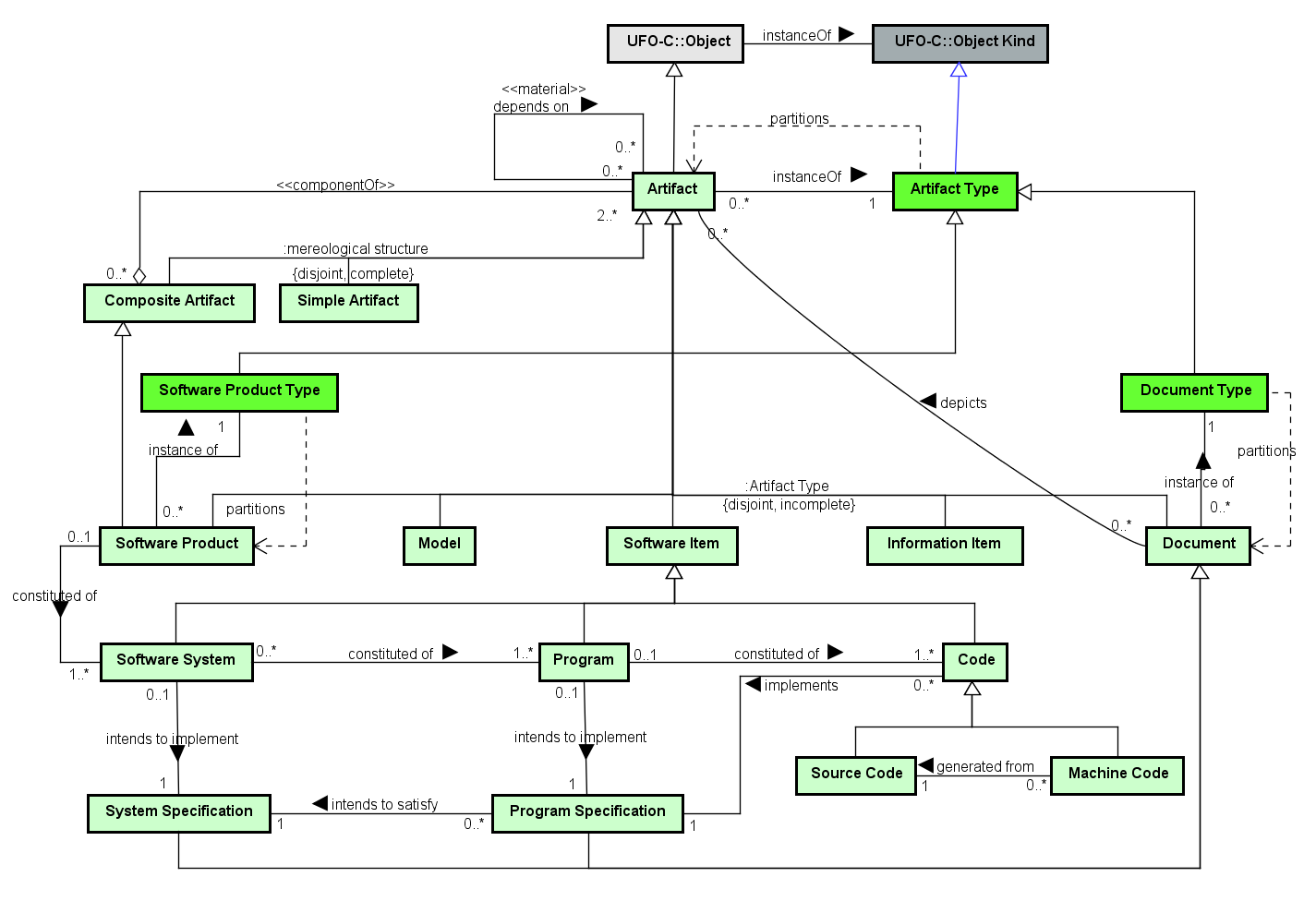

Figure 1 presents the conceptual model of the Software Artifact Ontology.

Figure 1. Software Artifact Ontology conceptual model.

In the context of the software domain, Artifacts are objects intentionally made to serve a given purpose in the context of a Software Project or Organization. They can be composed of other artifacts (Composite Artifact) or not (Simple Artifact). An artifact is an instance of an Artifact Type (a second order type). Artifact Type partitions the generalization set of Artifacts according to their nature, giving rise to a taxonomy of artifacts. More specific taxonomies can be established for specific types of artifacts, such as documents (established by instances of Document Type) and Software Product (Software Product Type), among others.

4. Concepts Definition

The following table shows the definitions for SwAO concepts.

Concept	Definition
Artifact	Object intentionally made to serve a given purpose in the context of a software Project or Organization. Ex.: a document, a model, a library, an e-mail, a bug.
Artifact Type	Object Kind which is the powertype of Artifact, classifying its specializations. Ex.: Document, Model, Software Product, Information Item, Software Item.
CASE Tool
Code	Software Item representing a set of computer instructions and data definitions expressed in a programming language or in a form output by an assembler, compiler, or other translator (SEVOCAB).
Composite Artifact	Artifact composed of other Artifacts.
Document	Any written or pictorial, uniquely identified, information related to the software development, usually presented in a predefined format. Ex.: a Requirements Document, a specification, a report.
Document Type	Artifact Type which is the powertype of Document, classifying its specializations. Ex.: Requirements Document, Design Specification, Project Plan.
Information Item	Relevant information for human use, produced or used by Performed Activity. Ex.: a documented requirement, a bug reported, an agreement e-mail, a component description.
Machine Code	Computer instructions and data definitions expressed in a form output by an assembler, compiler, or other translator, which can be recognized by the processing unit of a computer machine.
Model	A representation (abstraction) of a process or system from a particular perspective. Ex.: a use case model, a class model, a component model.
Program	Software Item which aims at producing a certain result through execution on a computer, in a particular way, given by the Program Specification. A Program is constituted by code, but it is not identical to code. Code can be changed without altering the identity of its program, which is anchored to the program's essential property: its intended specification (Program Specification).
Program Specification	A document that describes the purpose (structure and functions) of a program in sufficient detail to permit coding and to facilitate maintenance.
Programming Language	A language used to express computer programs.
Simple Artifact	Artifact that is not decomposed into other Artifacts.
Software Item	Piece of software, produced during the software process, not considered a complete Software Product, but an intermediary result. Ex.: a component, database schema, a script.
Software Product	One or more computer programs together with any accompanying auxiliary items, such as documentation, delivered under a single name, ready for use. Ex.: Astah modeling tool, Microsoft Word, Eclipse IDE.
Software Product Type	Artifact Type which is the powertype of Software Product, classifying its specializations. Ex.: Modeling Tool, Text Editor, IDE, Compiler.
Software System	Software Item that aims at satisfying a specification (System Specification), concerning a desired change in a data structure inside a computer, abstracting away from the behavior.
Source Code	A well-formed sequence of computer instructions and data definitions expressed in a programming language, in a form suitable for input to an assembler, compiler, or other translator.
System Specification
